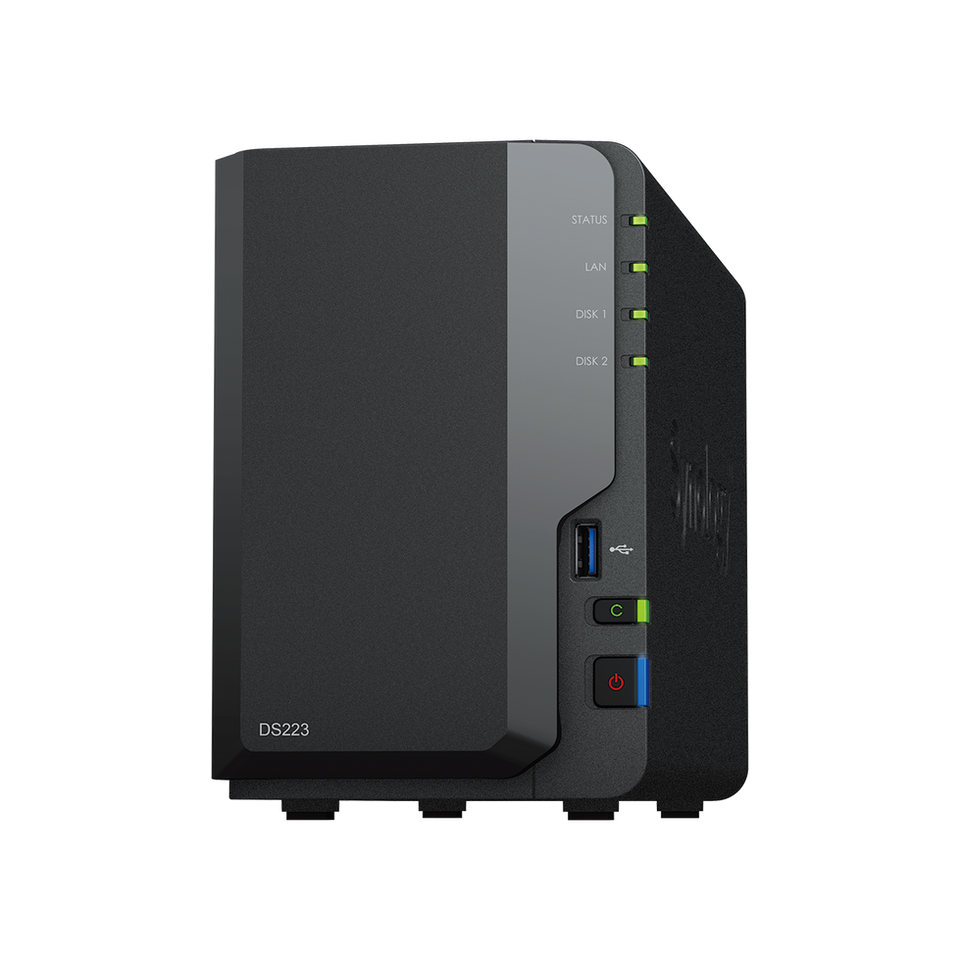

Synology DS223
$399.99
Excluding GST/HST
Synology Network Attachment Storage DS223 2bay DiskStation (Diskless)
Data management platform for home and small office Get your data under control Consolidate files from various sources into your own private cloud. The DS223 keeps the process simple and offers everything you need to keep your data safe and organized.
• Secure private cloud Enable anywhere, anytime access to up to 36 TB of data. (Raw capacity. Usable storage capacity may vary depending on drives used and RAID configuration.)
• Simple backup hub Create spare copies of your documents and media for easy recovery.
• Efficient operation Keep energy consumption low with just 17.3 W during operation. Private cloud made easy Import data from PCs, Macs, and other external storage devices at a 14% faster rate and keep all your devices in sync for smoother file management. Access from any device Get to your files from PC, Mac, Linux, Chromebook, Android, iOS, or any device equipped with a browser. Keep your data private or easily share it using secure links. Save storage space Enable on-demand mode to download files onto your Windows PC or Mac only when you access them. Pin the most important ones or the ones you access more frequently for convenient offline accessibility. Integrate with the cloud Sync files between your private cloud and public cloud services, including Google Drive, Dropbox, and Microsoft OneDrive. Retain local copies of your cloud data for centralized management and data ownership. Sync across locations Say goodbye to long waits while downloading or uploading files. Continuously synchronize content between two Synology devices to enable fast local access at any location, no matter the amount of data.
Quantity
PRODUCT INFO
Detail Specifications Hardware Specs
CPU
CPU Model: Realtek RTD1619B CPU Quantity: 1 CPU Architecture: 64-bit CPU Frequency: 4-core 1.7 GHz Hardware Encryption Engine: Yes
Memory System Memory: 2 GB DDR4 non-ECC
Notes Synology reserves the right to replace memory modules with the same or higher frequency based on suppliers product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage Drive Bays:2 Compatible Drive Type: 3.5" SATA HDD / 2.5" SATA SSD Hot Swappable Drive: Yes
Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports RJ-45 1GbE LAN Port: 1 USB 3.2 Gen 1 Port: 3 USB / SD Copy: Yes
Notes This devices 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System Internal Drives: Btrfs / EXT4 External Drives: Btrfs/EXT4/EXT3/FAT/NTFS/HFS+/exFAT
Others System Fan: 92 mm x 92 mm x 1 pcs Fan Speed Mode: Full-Speed Mode / Cool Mode / Quiet Mode Brightness Adjustable Front LED Indicators: Yes Power Recovery: Yes Noise Level: 14.6 dB(A) Scheduled Power On / Off: Yes Wake on LAN / WAN: Yes Power Supply Unit / Adapter: 60 W AC Input Power Voltage: 100V to 240V AC Power Frequency: 50/60 Hz, Single Phase Power Consumption: 17.343 W (Access) / 4.08 W (HDD Hibernation) British Thermal Unit: 59.19 BTU/hr (Access) /13.92 BTU/hr (HDD Hibernation)
Notes For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A),Temperature: 24.25-25.75°C , Humidity: 58.2-61.8%.
Temperature Operating Temperature: 0°Cto 40°C (32°F to 104°F) Storage Temperature: -20°C to 60°C (-5°F to 140°F ) Relative Humidity: 5% to 95% RH
Certification: FCC / CE / BSMI / VCCI / RCM / UKCA / EAC/ CCC / KC Environment: RoHS Compliant Packaging Content: Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 1 Quick Installation Guide X 1 Optional Accessories: 3.5" SATA HDD: HAT5300 / 2.5" SATA SSD: SAT5210 VisualStation: VS360HD Surveillance Device License Pack
Software Specs DSM Specifications Storage Management Maximum Single Volume SizeNote: 108 TB Maximum Internal Volume Number: 64 SSD TRIM: Yes Supported RAID Type: Synology Hybrid RAID / Basic / JBOD / RAID 0 / RAID 1 / RAID Migration: Basic to RAID 1 Volume Expansion with Larger HDDs: Synology Hybrid RAID / RAID 1 Volume Expansion by Adding a HDD: Synology Hybrid RAID
File Services File Protocol: SMB/AFP/NFS/FTP/WebDAV Maximum Concurrent SMB/AFP/FTP Connections: 200 Windows Access Control List (ACL) Integration: Yes NFS Kerberos Authentication: Yes
Notes The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted, the minimum transfer speed was not guaranteed. Account and Shared Folder: Maximum Local User Accounts 1,024 Maximum Local Groups: 256 Maximum Shared Folder: 256 Maximum Shared Folder Sync Tasks: 4
Hybrid Share Hybrid Share Folder Number: 5
Log Center Syslog Events per Second:400
General Specifications Networking Protocols: SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV Supported Browsers: Google Chrome / Firefox / Microsoft Edge Safari / Supported Language / English, Deutsch, Franais, Italiano, Espaol, Dansk, Norsk, Svenska, Nederlands, , Polski, Magyar, Portugus do Brasil, Portugus Europeu, Trke, esk...
Notes For an updated list of supported browser versions, check the DSM Technical Specifications. Synology Chat: Yes
Download Station Maximum Concurrent Download Tasks: 80
SAN Manager Maximum iSCSI Target Number: 10 Maximum LUN: 10 LUN Clone/Snapshot, Windows ODX: Yes
Media Server DLNA Compliance: Yes
Synology Photos Facial Recognition: Yes
Snapshot Replication Maximum Snapshots per Shared Folder: 256 Maximum of System Snapshots: 4,096
Surveillance Station Maximum IP cam (Licenses required): 20 (including 2 Free License) (see all supported IP cameras)
Total FPS (H.264) 600 FPS at 720p (1280x720) 460 FPS at 1080p (1920x1080) 300 FPS at 3M (2048x1536) 150 FPS at 5M (2591x1944) 110 FPS at 4K (3840x2160)
Total FPS (H.265) 600 FPS at 720p (1280x720) 500 FPS at 1080p (1920x1080) 400 FPS at 3M (2048x1536) 350 FPS at 5M (2591x1944) 200 FPS at 4K (3840x2160)
Notes 1.Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. 2.Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive Recommended Number of Concurrent Sync Clients 200 (the number of connections that can be maintained when the recommended number of hosted files was reached) Recommended Number of Hosted Files 500,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes 1.Exceeding the recommended numbers above will not block application operations, but may result in longer response time. 2.Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office Maximum Users: 200
Notes 1.Multiple files were opened for testing and each file was edited by 30 users simultaneously. 2.Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station: Yes
VPN Serve Maximum Connections: 20 Item Dimension (L inchxW inchxH inch): 12 x 11 x 5
Weight: 5 lbs
Warranty Information:2 Years
